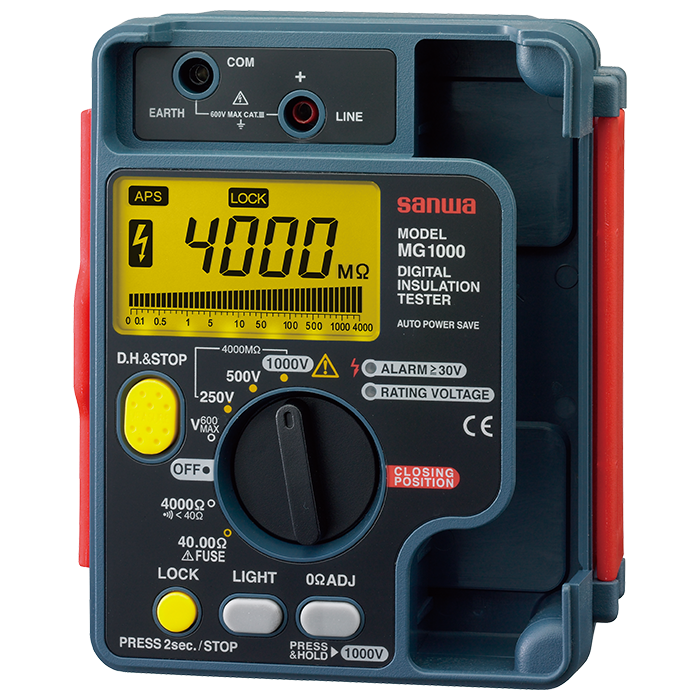

Sanwa MG1000 Insulation Tester
Features
- » Hot-line state(30V minimum) detection
- » Large volt mark with the buzzer sound
- » Automatic data hold function
- » Continuity test(200mA) function
Application
- » Bar graph just like analog meter
- » Large display with backlight
- » Easy to use & tough body
- » IP54
Add to Inquiry
Key-Specifications
MΩ Function
Range: 4M/40M/400M/4000MΩ Accuracy: ±(3%+4) Resolution: 0.001MΩ
Rated voltage
Range: 250/500/1000V
ACV/DCV
Range: 600V(AC/DC Automatic detection) Accuracy: ±(3%+2) Resolution: 1V
Ω（Continuity)
Range: 4000Ω(Buzzer and ALARM indicator) Accuracy: ±(3%+3) Resolution: 1V
Ω Function
Range: 40Ω Accuracy: ±(3%+10) Resolution: 0.01Ω
Rated current
1.0～1.2mA
Short-circuit current
2mA or less
Live circuit detection
At 30V AC/DC or more, inhibits test, buzzer sounds and ALARM indicator lights up
Battery
LR6(AA alkaline battery)1.5V×6
Size/Mass
H170×W142×D57mm/Approx. 600g
Safety standard
IEC61010 CAT.Ⅲ 600V
