OFI-400 Series Optical Fiber Identifier
Features
- » 5-Year product warranty; 3-Year recommended calibration interval
- » 2-position plunger for use with many fiber types
- » Detects directional traffic, CW and 270, 330, 1000 and 2000 Hz tones
- » Low insertion loss
Application
- » Live fiber detection avoids technician-induced outages; Core power measurements
- » Fiber identification and tracing with CW or tones
- » Identify high power fibers of circuits (OFI-400HP)
- » For use with 2mm and 3mm jacketed fibers (OFI-400C)
Add to Inquiry
OFI-400 Series Optical Fiber Identifer

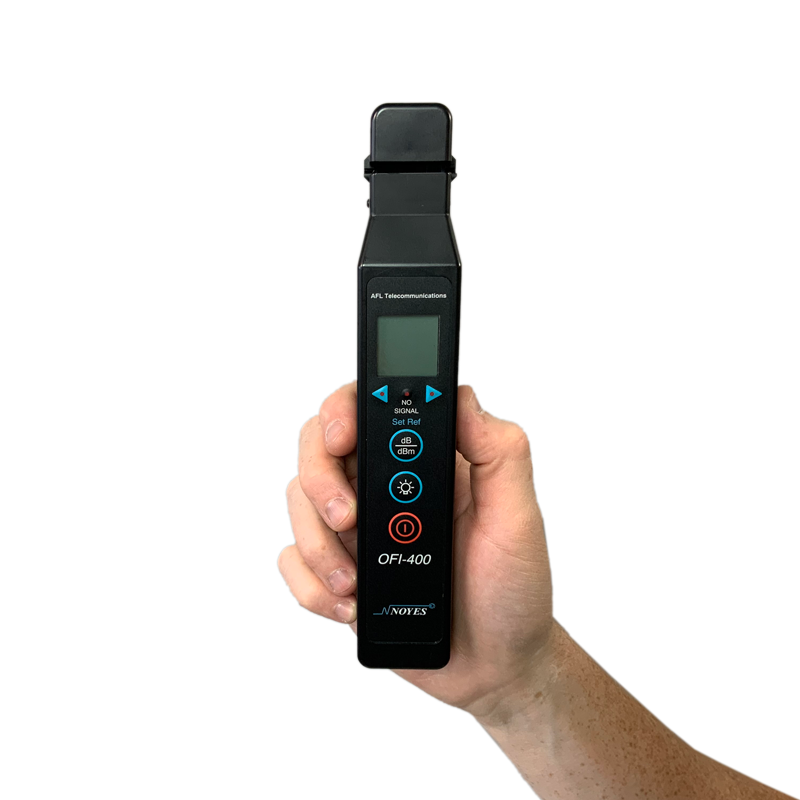

Rugged, hand-held and easy-to-use fiber optic test instrument designed to detect and measure the core power levels of optical signals on single-mode optical fiber without disrupting traffic on that fiber. The OFI-400 is simply clamped onto a fiber and indicates the presence and direction of traffic, CW signals and 270, 330, 1000 and 2000 Hz test tones. It allows technical personnel to unambiguously identify a specific fiber and eliminates the risk of accidental disruption of revenue service. AFL OLS7, OLS2, CSS1-SM and Optical Light Sources are ideal companions for the OFI-400.
Models

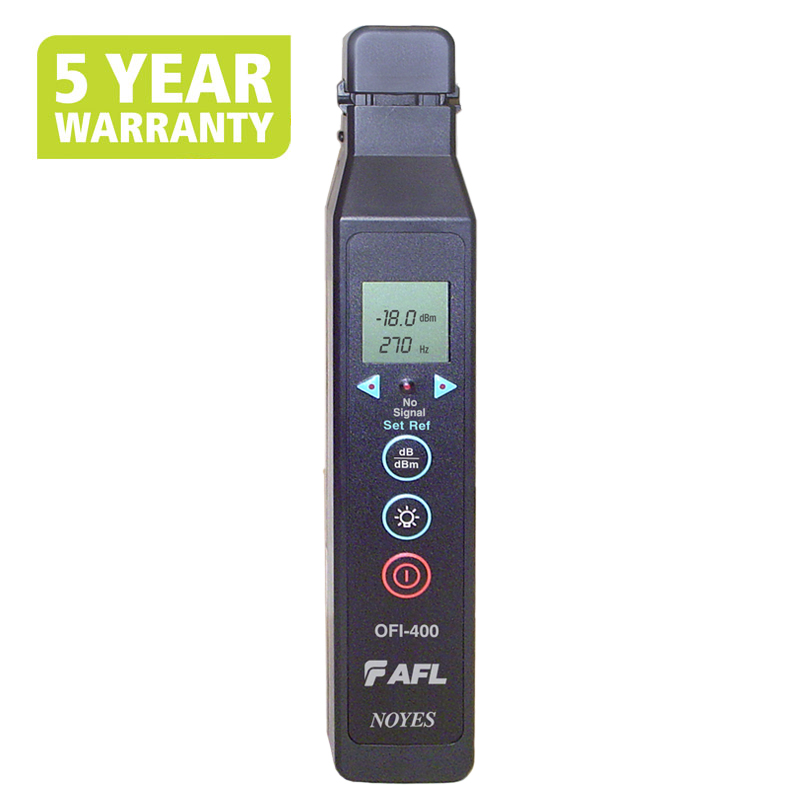

OFI-400
Insertion Loss: 0.8 dB @ 1310nm
Detection Sensitivity: -45 dBm @1310 nm, 250 µm fiber
Power Measurement: +13 to -50 dBm @1550 nm, 250 µm fiber

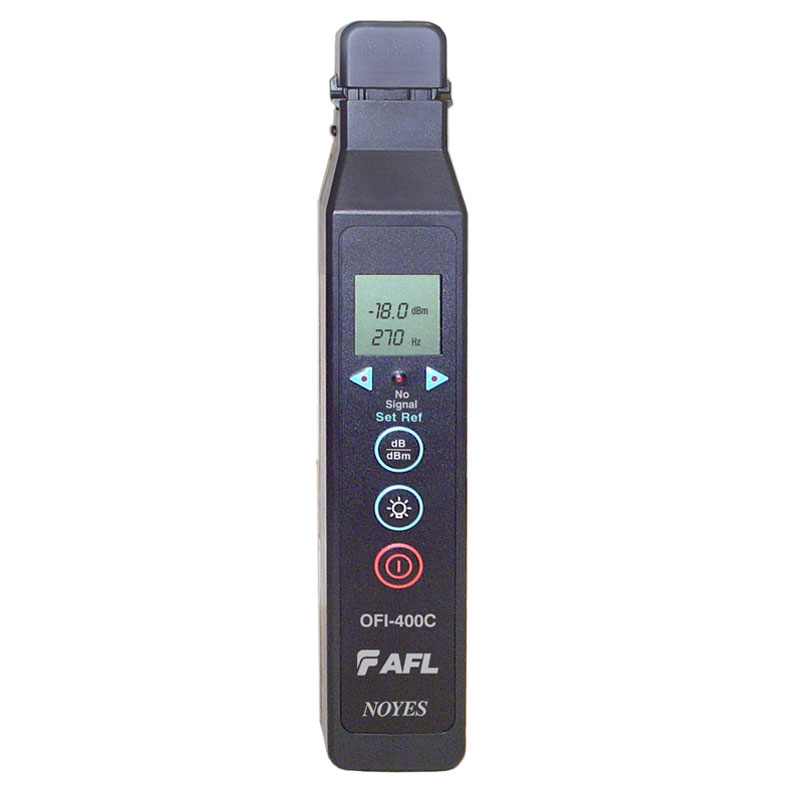

OFI-400C
Insertion Loss: 1.0 dB @ 1310nm
Detection Sensitivity: -40 dBm @1550 nm, 3 mm fiber
Power Measurement: +13 to -40 dBm @1550 nm, 3 mm fiber

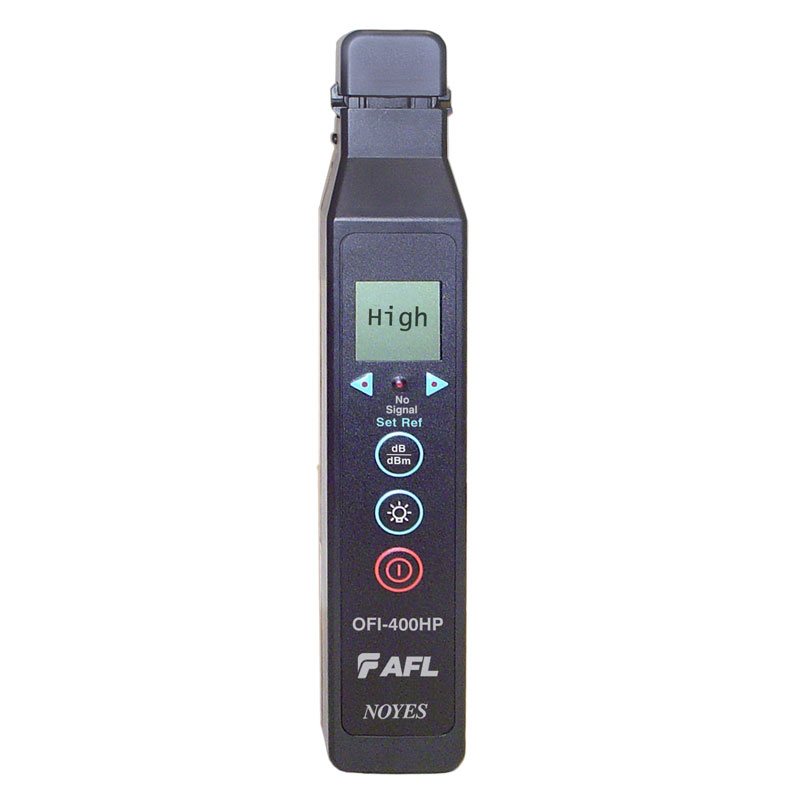

OFI-400HP
Insertion Loss: 0.5 dB @ 1310 nm
Detection Sensitivity: -40 dBm @1550 nm, 3 mm fiber
Power Measurement: +33 to -40 dBm @1550 nm, 3 mm fiber
